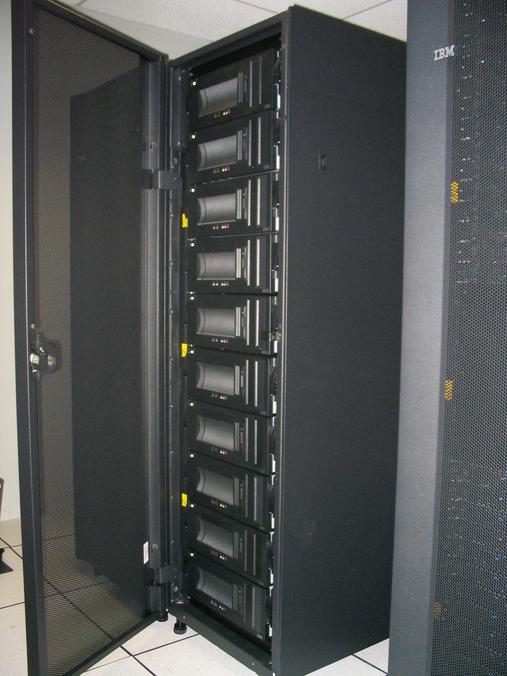

There are two IBM Intellistation Z Pro systems and eight Intellistation M Pro
systems in each rack. We installed the rack mounting kits for the systems,
so they all now have the same front bezel. The second rack is obscured in this photo
by the open door on the first rack.

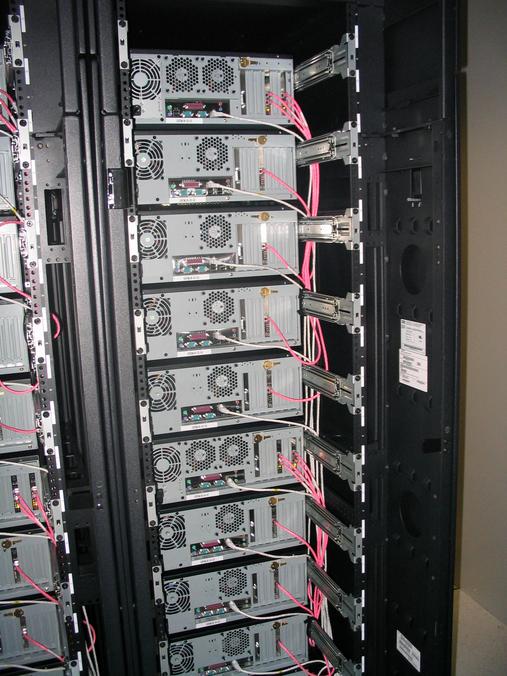

This is the view of the rear of one of the racks. This photo was taken
before the NVIDIA graphics cards were installed. The white ethernet
cables connect the external 100Mb/s ethernet interfaces. The pink ethernet
cables are crossover cables for the switch-less internal gigabit ethernet
network. The supernodes (IBM Intellistation Z Pros) have two dual interface
NICs.
